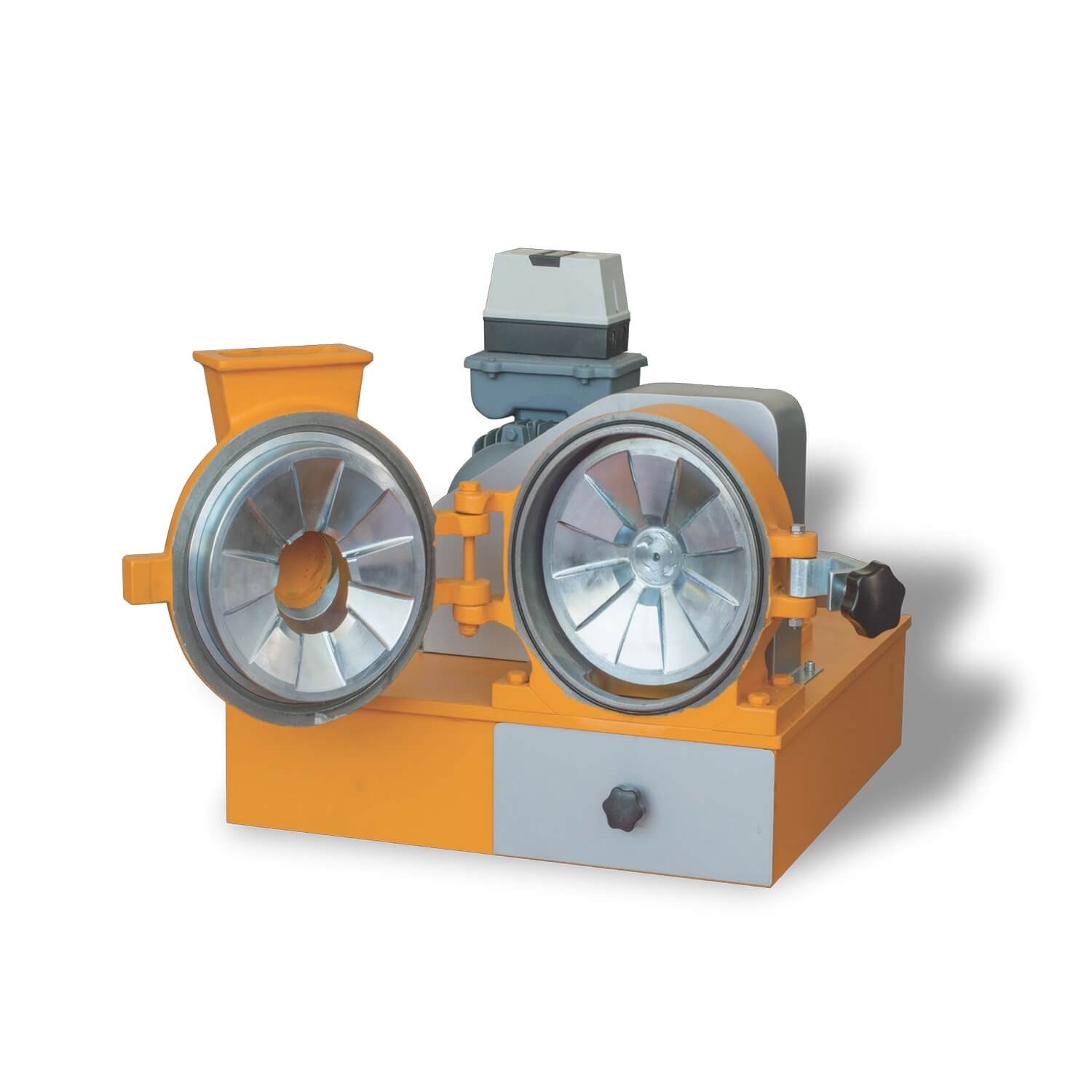

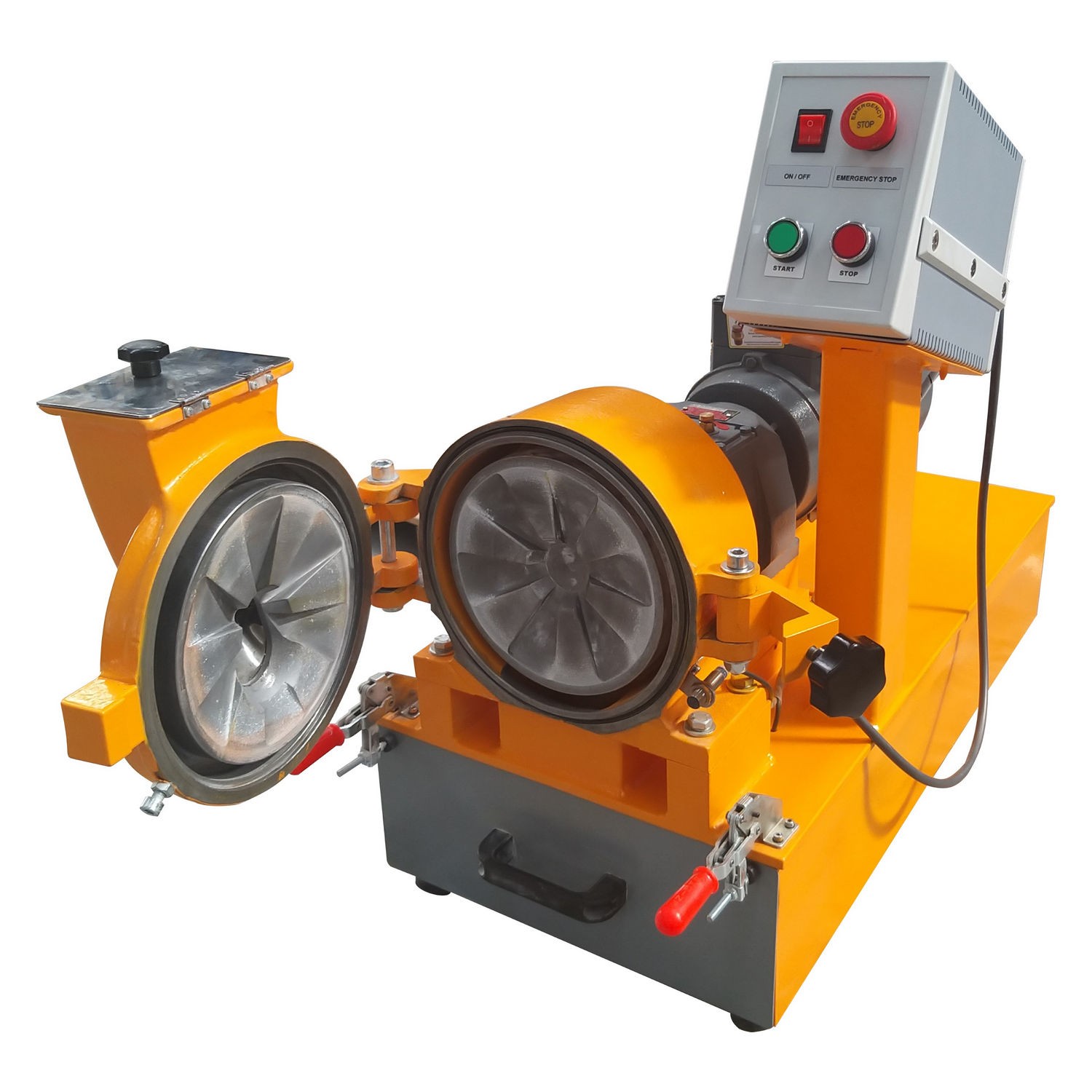

DISC MILL

CODE : M420
  • Used under rough conditions for grinding of hard, medium-hard, brittle and tough materials
  • Required few minutes to achieve the desired grind size, and work continuously
  • Application examples: minerals, ores, bauxite, clinkers, chalk, chamotte, concrete, construction materials, soil samples, gypsum … etc.

PRINT DATASHEETprintcard

ADD TO QUOTEaddtoquotecard

entry
entry
entry
TECHNICAL SPECIFICATIONS
ORDERING INFORMATION
TECHNICAL SPECIFICATIONS

Small Disc Model:

  • Capacity: 20 – 100 kg/hr depending on material and final size
  • Disc diameter: 170 mm
  • Feeding size: < 10 mm
  • Final fineness: 50 – 200 microns
  • Collector: 25 x 20 x 8 cm
  • 380 V / 50 Hz


Large Disc Model:

  • Capacity: 40 – 200 kg/hr depending on material and final size
  • Disc diameter: 205 mm
  • Feeding size: < 15 mm
  • Final fineness: 50 – 200 microns
  • Collector: 25 x 20 x 8 cm
  • 380 V / 50 Hz
